Using the Patch Librarian

In this chapter, we are going to walk through the usage of the Patch Librarian and all its functions & possibilities. It might take some time to understand how it works, but for those who used Emagic SoundDiver in the past, this workflow is pretty much the same.

Virus Editor User Manual - Patch Librarian

Virus Editor User Manual – Patch Librarian

We have made the librarian look and feel the same across all our products. i.e., Waldorf Blofeld Editor has the same functions in the librarian, with some additional features like ability to import microQ and Q banks in the librarian.

But in general, you can request data from hardware to the librarian, store data from librarian to hardware, store banks to HDD as you make edits etc.

NOTE: Librarian view is not synchronized with hardware memory. Librarian view displays SINGLE or MULTI data stored in your HDD ( [data folder]/Patches/ -folder ).

NOTE: Keep your banks organized. If you have too many levels in your folder tree, librarian is not able to solve it. Detail below.

  • [data folder]/Patches/sub folder 1/sub folder 2/my bank.mid – this is OK.
  • [data folder]/Patches/sub folder 1/sub folder 2/sub folder3/my bank.mid – this is NOT OK.

There is a lot to cover in this chapter, so it is perfect time to get some coffee or tea.

Let’s dive in!

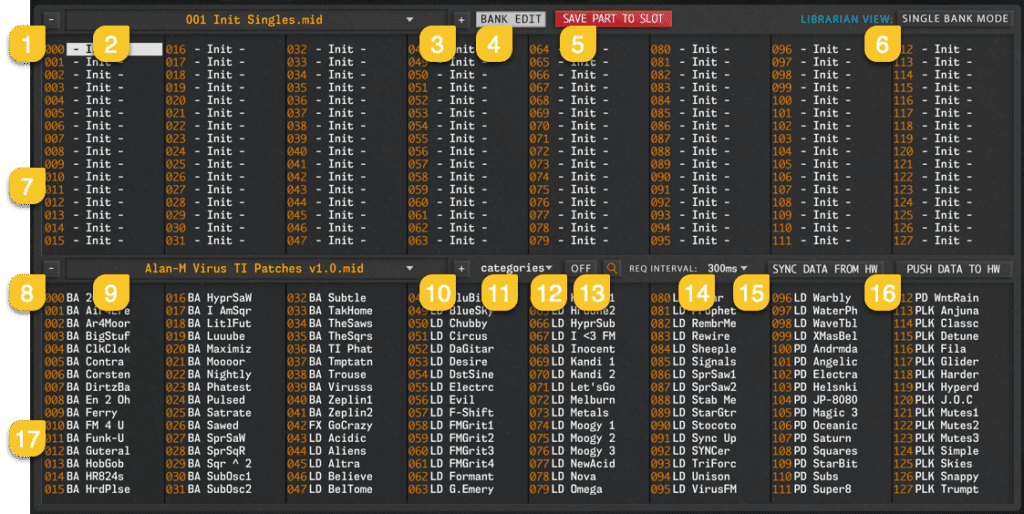

BASIC LAYOUT AND FUNCTIONS

Let’s start with the definitions of basic layout and button / menu explanations.

  • [1] & [8] = Select previous SINGLE or MULTI bank from the bank tree.
  • [2] & [9] = Display popup menu of SINGLE or MULTI banks. Menu displays banks from data folder.
  • [3] & [10] = Select next SINGLE or MULTI bank from the bank tree.
  • [4] = Open Bank Edit menu, with most of the available request, write and other utilities. More details below.
  • [5] = Save data from currently selected part TO currently selected librarian slot (upper view only).
  • [6] = Display SINGLE or MULTI mode programs in the librarian window.
  • [7] = Upper data view, also used as EDIT BUFFER. Data can be edited only in the upper data view. Double click any entry to send the data to currently active part or drag the patch from librarian to the part you want.
  • [11] = Display Category filter drop down menu. Categories are Access Virus pre-defined categories. When category is set, another category filter comes available to narrow down your filter results.
  • [12] = Toggle on Category filtering. Selected category results will be shown in the lower data view. Check Utilities menu functions above to learn more about Librarian Preferences regarding to Category filters.
  • [13] = Toggle on Search function. Search results will be shown in the lower data view. Check Utilities menu functions above to learn more about Librarian Preferences regarding to Search settings.
  • [14] = Sync Data From Hw function was explained earlier in the manual.
  • [15] = Push Data To Hw function. More details below.
  • [16] = Lower data view. This view can be changed while upper data view is locked due to unsaved data changes. Double click any entry to send the data to currently active part or drag the patch from librarian to the part you want.
Virus Editor User Manual - Patch Librarian Toggles

Virus Editor User Manual – Patch Librarian Toggles

Now that we understand the basic layout, we can dive into more specific details per function.

Upper Data View

Upper [1] and lower data list views has different function in the Editor behavior. Upper list acts as an edit buffer or “destination” for your bank editing.

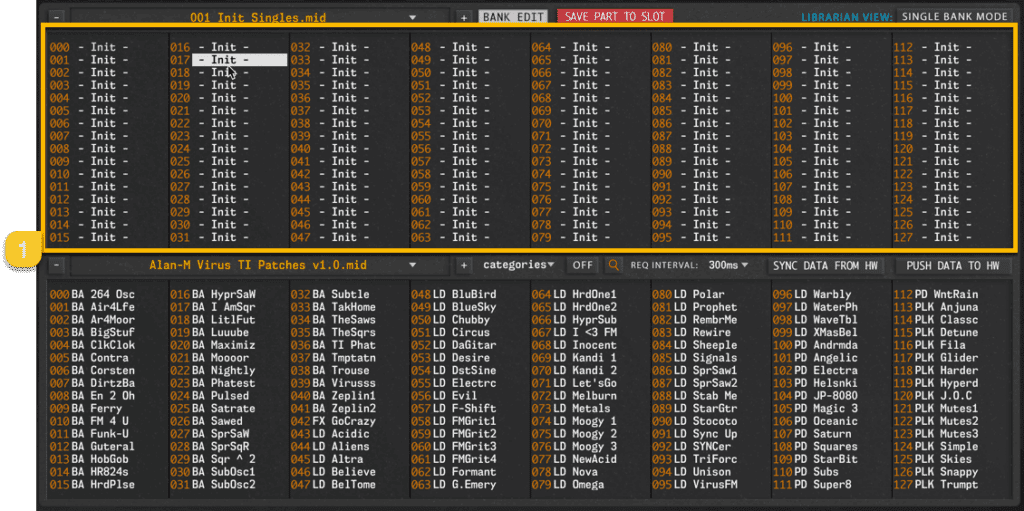

Virus Editor User Manual - Upper Patch List View

Virus Editor User Manual – Upper Patch List View

Here is what you can do:

  • drag and drop data from upper list slot to another slot in upper list OR
  • drag and drop data from lower list slot to upper list slot.
  • copy data from upper OR lower list slot and paste the data to any of the upper list slots.
  • rename any single patch or multi program in upper list
  • initialize single slot from upper list view or initialize the entire bank at once.

Here is what you cannot do:

  • drag and drop data from upper list to lower list.



Lower Data View

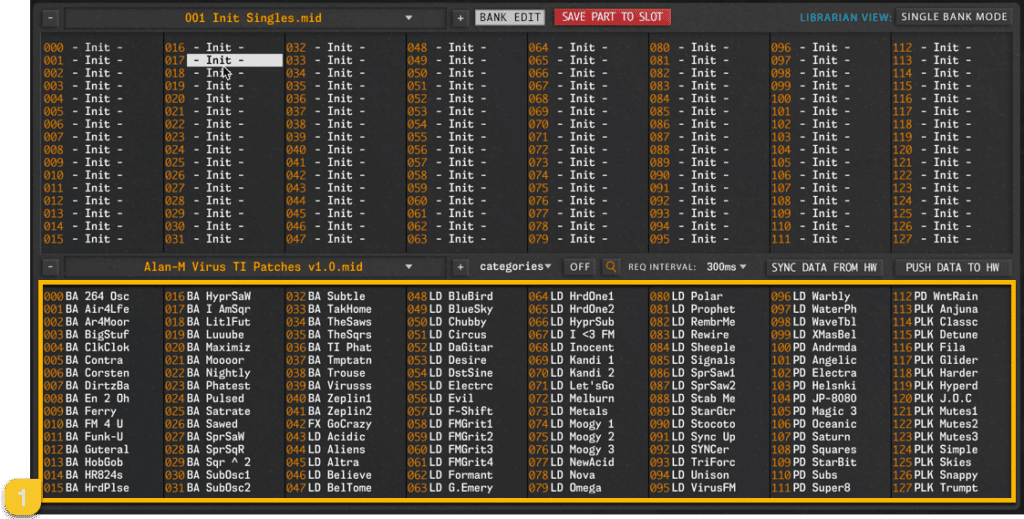

Lower [2] data list acts as a “source” where you can copy data from and still browse banks while upper list view has unsaved edits. Category and search results are shown in lower list.

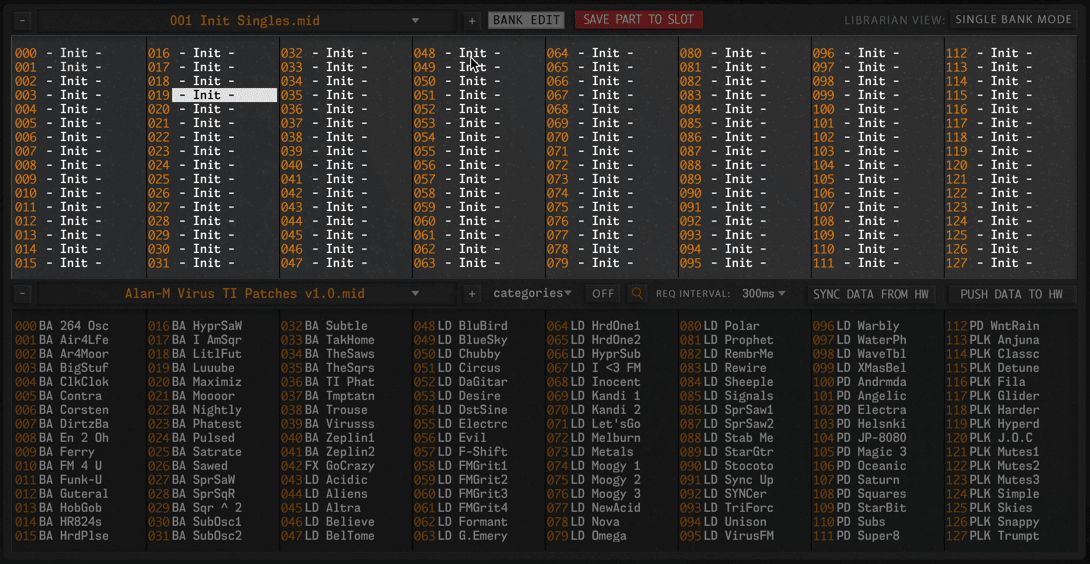

Virus Editor User Manual - Lower Patch List View

Virus Editor User Manual – Lower Patch List View

You can also initiate category filtering or search for a certain patch from the entire catalogue, even when bank editing is active.

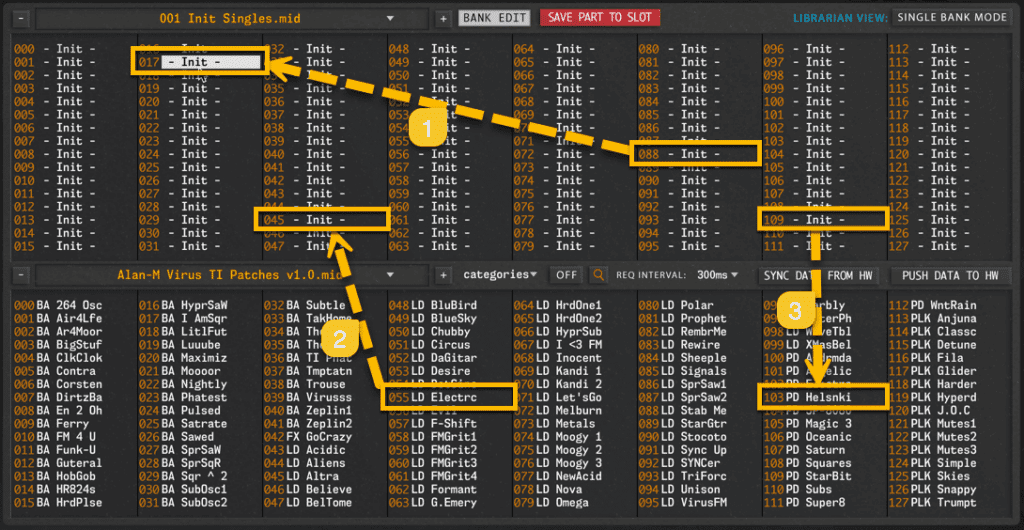

Drag and Drop Examples: 1 and 2 are OK – 3 is not going to work

Virus Editor User Manual - Drag and Drop options

Virus Editor User Manual – Drag and Drop options

Send SINGLE or MULTI to hardware

Double click with Mouse or Drag’n’drop

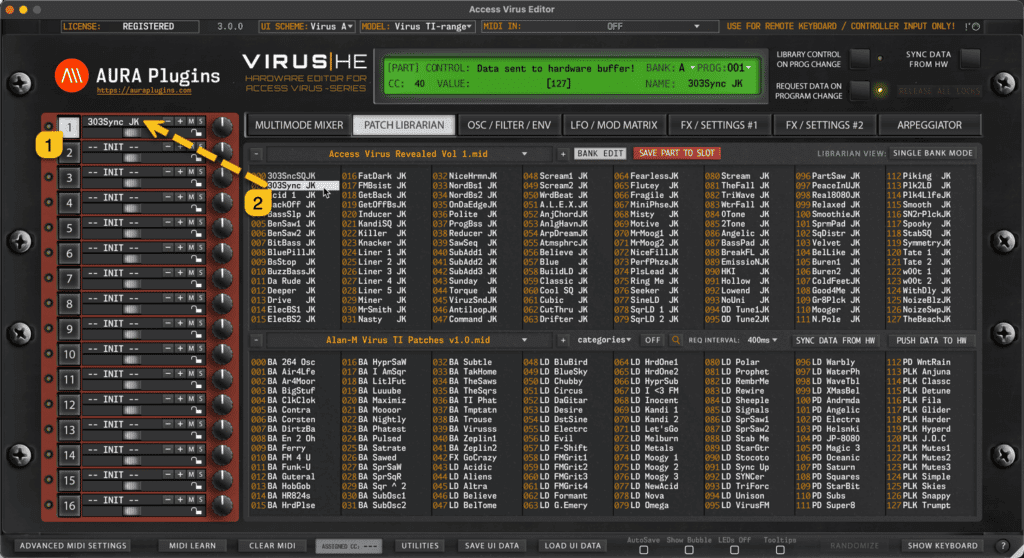

Sending data from Librarian slot to hardware is simple. Choose part [1] where you want the data to be sent and then double click any program name [2] from upper or lower data view. You can also drag and drop presets from Librarian to parts. Start dragging a preset from the list and drop it over the part name!

This data is sent to hardware edit buffer. It is not written to hardware memory. This also updates the software interface, so you are in sync with parameters on both ends.

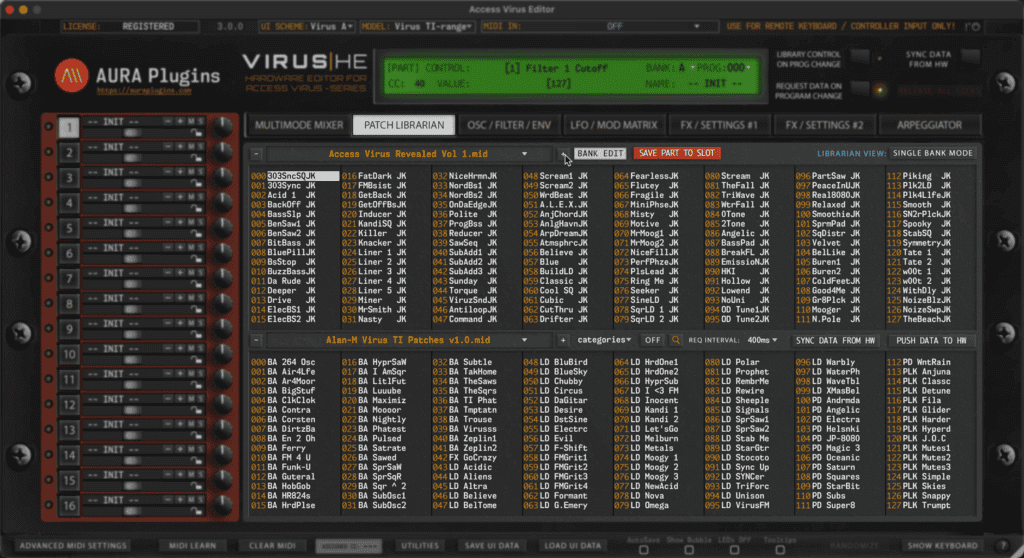

Virus Editor User Manual - Double Clicked Patch Sent to Active Part

Virus Editor User Manual – Double Clicked Patch Sent to Active Part

Computer keyboard Arrow keys

You can also use keyboard arrow keys to select programs. This works only when mouse cursor is over the upper or lower list view.

  • Arrow down will select patch below the current patch.
  • Arrow up will select patch above the current patch.
  • Arrow left will select patch left to the current patch.
  • Arrow right will select patch right to the current patch.



Editor Program Change buttons

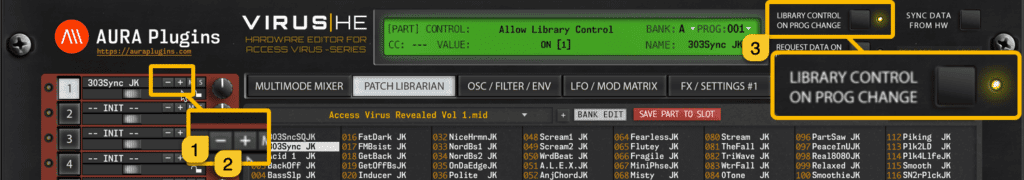

Changing librarian programs with – [1] or + [2] buttons work too, but only when LIBRARY CONTROL ON PROG CHANGE [3] is toggled on.

Virus Editor User Manual - Library Control with Program -/+ Buttons

Virus Editor User Manual – Library Control with Program -/+ Buttons

Program Change via MIDI

Program changes via MIDI will select corresponding patch from the librarian and send it to the hardware as well. i.e., Program Change 98 will send patch from slot 98 to the hardware.

TIP: Programs are sent to hardware based on the currently active list. Active list is the one which has the white box around the program name.

Virus Editor User Manual - Upper list is active and acts as a source for any programs

Virus Editor User Manual – Upper list is active and acts as a source for any programs

Virus Editor User Manual - Lower list is active and acts as a source for any programs

Virus Editor User Manual – Lower list is active and acts as a source for any programs

Selecting Previous or Next Bank

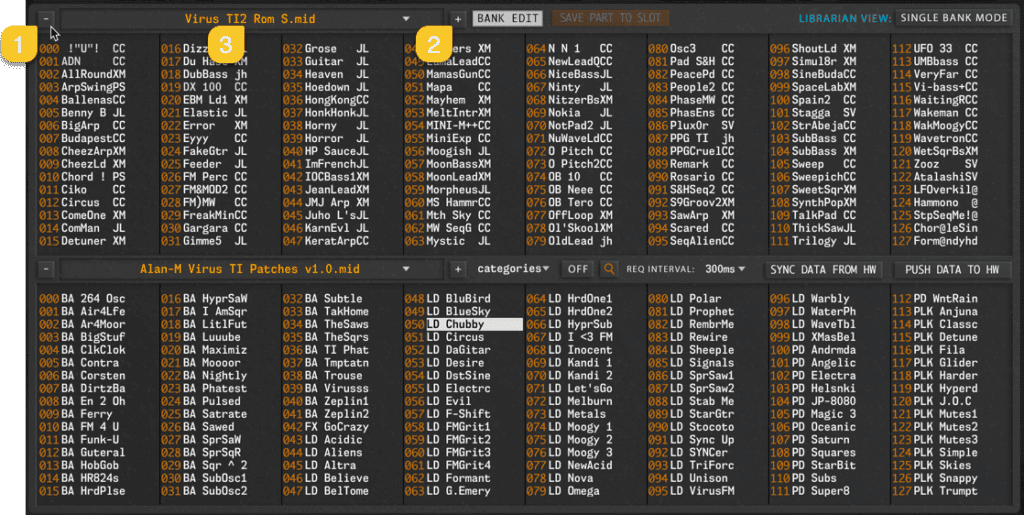

Use – [1] or + [3] to select between previous and next bank from the HDD. You can also select bank by clicking the bank name [2] area. This will show a pop-up menu with all compatible banks in the Patches folder. Both lists behave the same unless Category or Search filter is on.


Virus Editor User Manual - Librarian Bank Select

Virus Editor User Manual – Librarian Bank Select

TIP: You can use the lower data list if upper data list view is locked due to unsaved edits. This is handy if you want to combine patches from different banks to your personal favorites bank.

TIP: You can also change bank from the main control display area if Librarian Control on Program Change is toggled on as mentioned earlier.

Save Part to Slot

SAVE PART TO SLOT function is only available when LIBRARIAN VIEW is set to SINGLE BANK MODE and only when upper data list view is active.

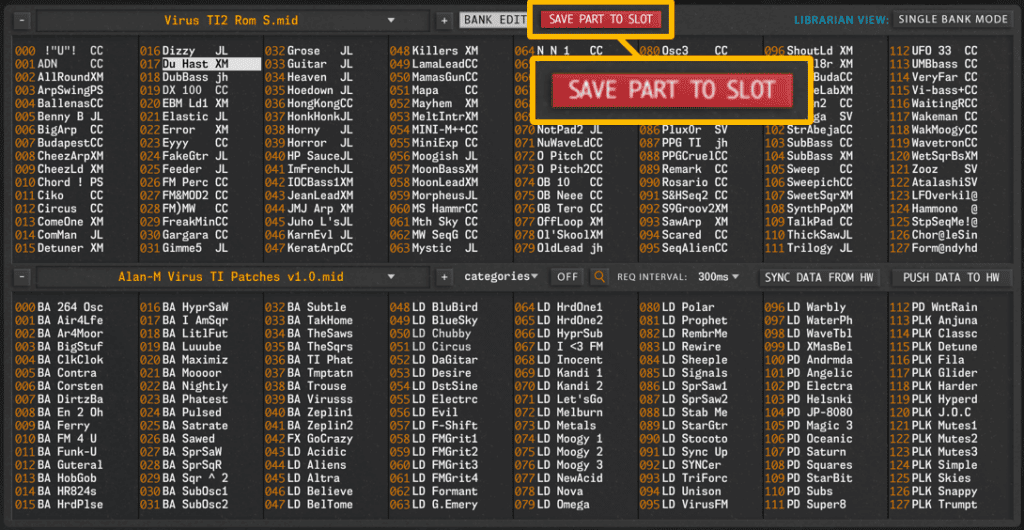

Virus Editor User Manual - Save Active Part to Active Librarian Slot

Virus Editor User Manual – Save Active Part to Active Librarian Slot

Now, to understand how this function works, let’s break it down:

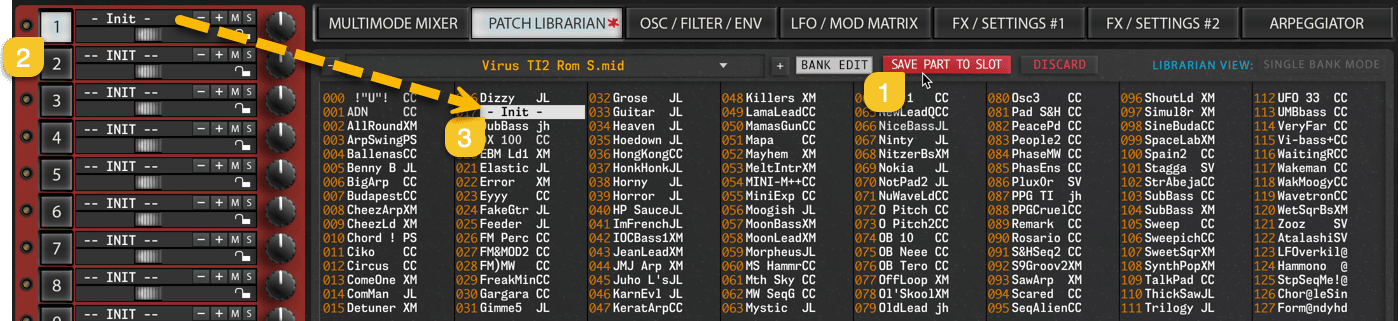

Once you click SAVE PART TO SLOT [1] button, Editor will GET data from currently active part [2] to currently selected librarian slot [3].

Virus Editor User Manual - Data Saved From Part 2 to Slot 012

Virus Editor User Manual – Data Saved From Part 2 to Slot 012

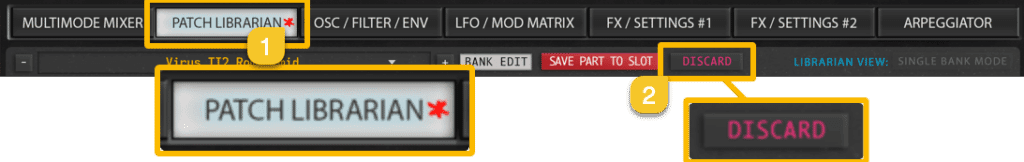

Once data is stored, RED * sign will appear in the PATCH LIBRARIAN [1] tab to indicate that there are unsaved changes in the current bank.

Upper list bank – / + and bank drop down menus are disabled, until changes are saved or if you DISCARD [2] to trash your changes.

Virus Editor User Manual - Unsaved Changes in Librarian

Virus Editor User Manual – Unsaved Changes in Librarian

You can continue browsing between different banks with the lower data view if you wish.

Librarian View

LIBRARIAN View button allows you to view SINGLE patch bank contents in the data view areas or MULTI bank contents.

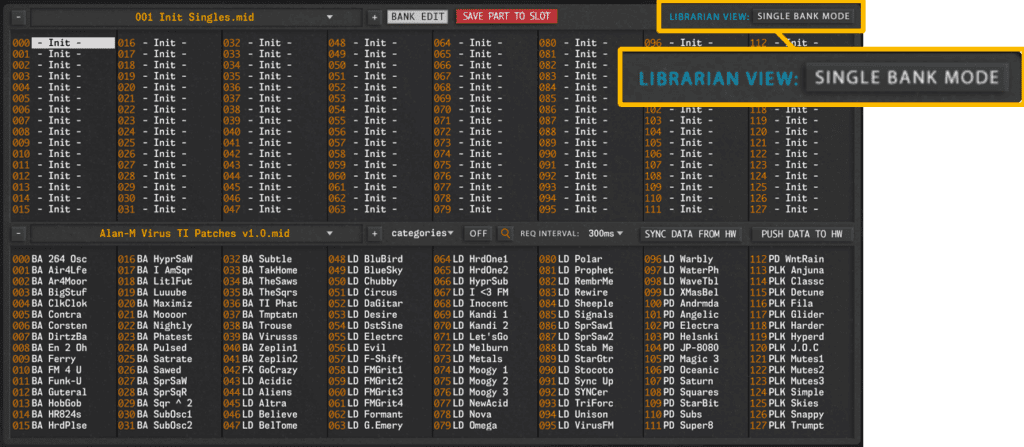

Virus Editor User Manual - Librarian Data View Mode

Virus Editor User Manual – Librarian Data View Mode

When SINGLE mode is chosen, you can load individual patches to your currently selected part.

When MULTI mode is chosen, you can load MULTI program to Virus, which contains information about the MULTI only. Only issue with MULTI programs is that the program data does not “know” which patch was set on each part, instead it only recognizes the programs by Bank and Program numbers.

NOTE: if you write SINGLE data to your hardware memory, MULTI data is not aware of this change and cannot map the sound from different location of the hardware even if it would be available.

We recommend using SAVE UI DATA function to write your data in our HDD. This format has each part patch stored in it and it loads them from the file once they are being opened.

Category Filter

You can sort patches based on the category set in the FX / SETTINGS #1 tab. You can set two category tags per SINGLE patch.

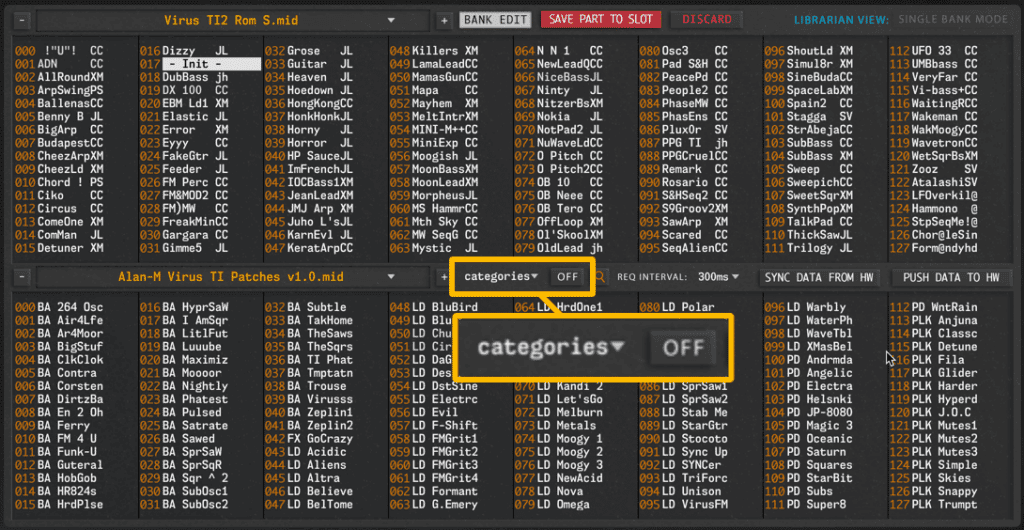

Virus Editor User Manual - Category Filter Options

Virus Editor User Manual – Category Filter Options

Category patches will be shown in the lower data list view once Category sorting is activated.

This is helpful when you want to get patches from a specific category and copy those patches to your favorite list in the upper data list view.



Toggle on Category Filter [2] and select category #1 from the categories [1] pop-up menu. Category Filter #2 [3] becomes active which can be used in conjunction with category #1 filter to narrow down patches even further.

Virus Editor User Manual - Category Filter On

Virus Editor User Manual – Category Filter On



If there is too many results for your liking, use Utilities menu [1] and navigate to Librarian Preferences [2]. Toggle on Limit Categories to Active Bank [3] and results will be shown accordingly. Some designers are not settings categories at all, so you might get blank results in some cases!

Virus Editor User Manual - Category Limit to Active Bank

Virus Editor User Manual – Category Limit to Active Bank



TIP: If category filter and LIBRARY CONTROL ON PROGRAM CHANGE are on and lower list is active, you can change category organized patches with same MIDI, mouse and keyboard commands as mentioned earlier.

Toggle off Category Filter button to display normal patches in the lower data list.

Search Filter

You can search patches from the entire patch catalogue based on your search terms. Activate search function by clicking the magnifying glass.

Virus Editor User Manual - Search Patches Option

Virus Editor User Manual – Search Patches Option



Category filtering options will be replaced by search field [1] and case sensitive search [2] filter.

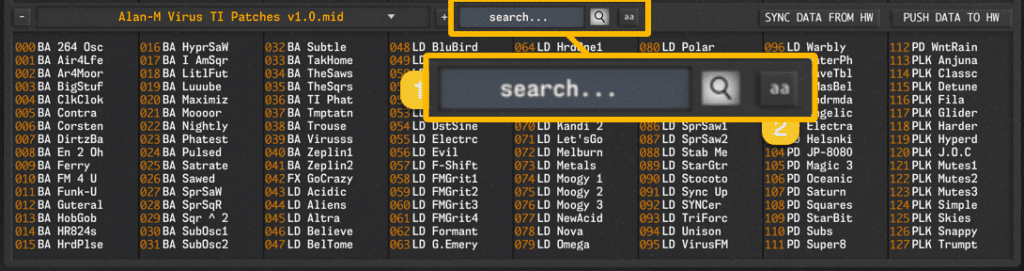

Virus Editor User Manual - Enter Search Keyword

Virus Editor User Manual – Enter Search Keyword

To perform a successful search, type in at least three characters to get some results. Search results are then shown in the lower list and selecting patches happens like mentioned earlier. You can also copy and paste search results to upper list as you wish.

Use case sensitive [2] toggle to define if search results should match the case how you typed it or leave it off to show a much broader results screen.

  • PLK search term with case sensitive filter off [aa] will show all patches containing plk and PLK or plK etc.
  • PLK search term with case sensitive filter on [Aa] will show results containing exact match.

If search term gives you multiple banks or results, you can view them just like with the category filter by choosing different bank with – / + buttons or bank select drop down menu.

In the sample below, I tried to perform search for “cat” [1] but I got popup window saying No Hits! [2].

Virus Editor Editor Manual - No search results

Virus Editor Editor Manual – No search results

I thought that one or more patches MUST have a word “cat” in it, so I changed search settings from Utilities [1] menu -> Librarian Preferences [2] and unchecked Limit Search to Active Bank [3].

Search results Containing… [4] defaults to on, which will search patch name containing your search term, instead searching from the 1st character onward.

Virus Editor User Manual - Librarian Search Preferences

Virus Editor User Manual – Librarian Search Preferences

Still using search term “cat” [1] and as we can see, there are some results. Limit Search to Active Bank defaults to on.

Virus Editor User Manual - Librarian Search Results

Virus Editor User Manual – Librarian Search Results

Toggle of magnifying glass to display normal patches in the lower data list.
